Working Principle of Paper Cup Machine

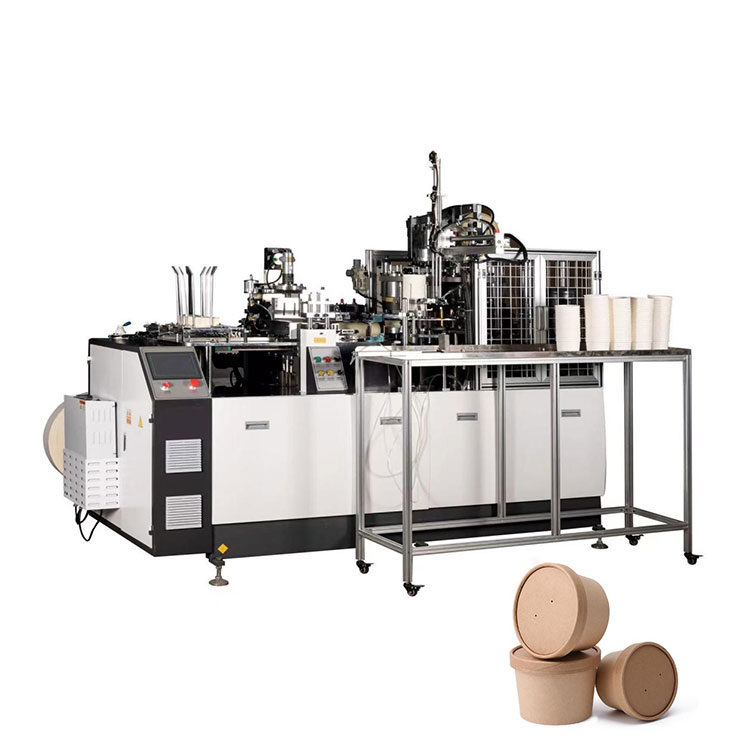

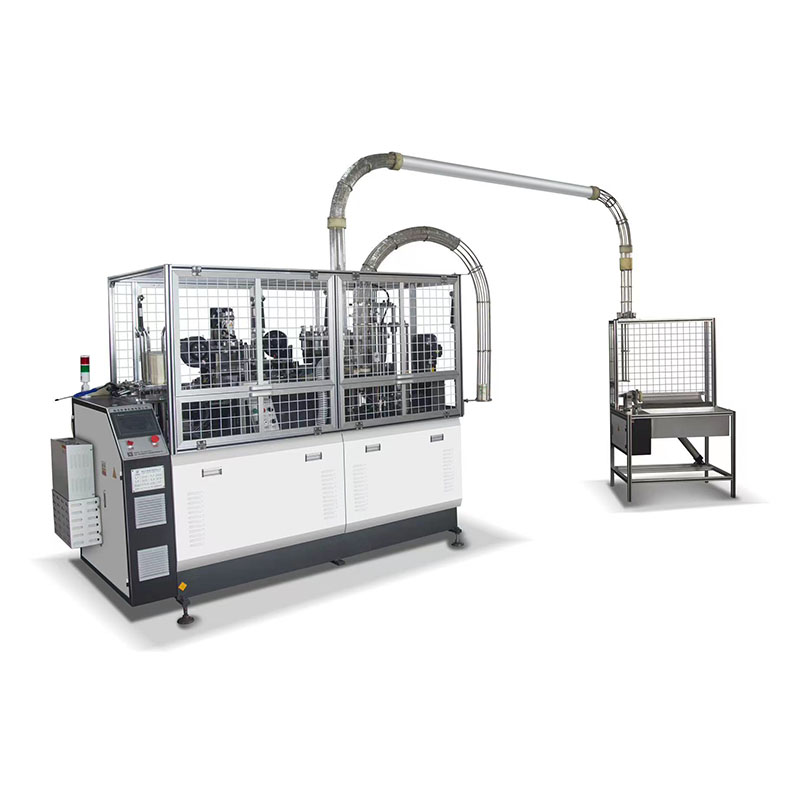

Paper cup machine is a kind of equipment specially used for producing paper cup products. Generally speaking, the production and manufacturing of paper cups is a cyclic process, which is to produce high-quality paper cup products through continuous cyclic mechanical action. So, do you know? The continuous repetitive action of the paper cup machine is realized by the cam mechanism in the machine.

Paper cup machine cam principle

The production of paper cups is a cyclic process, which continuously repeats the same action to produce more paper cups. This continuous repetitive action of the paper cup machine is completed by the cam organization of the paper cup folding machine.

The cam organization is simple and compact in structure and plan, and it can complete various motion requirements, which makes it outstanding not only in paper cup machines, but also in other equipment. Generally, the cam mechanism of the paper cup folding machine enables the machine to obtain more complex motion patterns, thereby achieving the circular effect of cardboard production and realizing the requirements of producing more paper cup products.

Specific working principle

1. Put the cup paper on the gearbox between the conveying roller and the conveying roller, and use the print head to print with the cup paper under the action of the connecting part in order to make the unique trademark and pattern of the paper cup.

2. The finished printed cup paper will move to the transmission plate of the rotating column under the action of the transmission film, and under the action of the cam mechanism, the bottom plate and the top plate can realize the paper clamping.

3. The cup paper enters the index turntable, and under the action of the cup bonding device, the cup paper can be rolled to form the structure of the cup, and then the two ends of the cup can be bonded together to form a cup.

4. After the production of the cup is completed, the cup bottom paper can be input under the action of the cup bottom bonding device, and the cup bottom paper forms the structure of the cup bottom, and then the cups are bonded together to form a paper cup.

5. Complete the production of corrugated paper cups.
