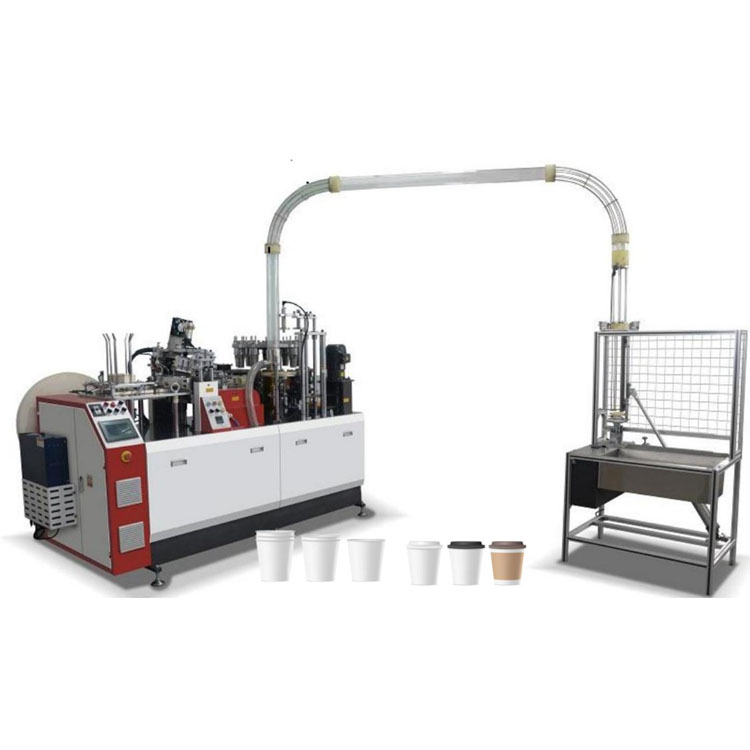

Automatic Intelligent Paper Cup Forming Machine
You can purchase our Automatic Intelligent Paper Cup Forming Machine with confidence from our factory, as we guarantee excellent after-sales service and prompt delivery.
Model:YB-S100
Send Inquiry
Product Description
The Automatic Intelligent Paper Cup Forming Machine YB-S100 efficiently manufactures paper cups of diverse sizes, utilizing processes such as air suction paper transfer, welding, lubrication, tube conveyance, bottom punching, folding, preheating, crimping, rolling, and collection.
Yongbo Machinery Automatic intelligent paper cup forming machineYB-S100 Basic information
|
Model number |
YB-S100 |
brand |
YongBomachinery
|
|
speed |
100-110min/pcs |
country |
China |
|
trademark |
Customized |
After sale |
Online |
|
transport |
Wooden Case |
warranty |
1year(non-human reason) |
Yongbo MachineryAutomatic intelligent paper cup forming machineYB-S100 Machine data
|
Model number |
Medium speed intelligent paper cup machineYB-S100
|
|
Paper cup size |
2-12oz (Mold replaceable, Max cup height: 115mm, Max bottom width: 75mm) |
|
Operating speed |
100-110 PCS/min (speed is affected by cup size, paper quality thickness) |
|
Raw material |
Single or double sided PE coated paper (suitable for hot and cold drink cups) |
|
Gram weight of paper |
150-350 grams per square meter |
|
voltage |
50/60HZ,380V/220V |
|
Total power |
5 kw |
|
Gross weight |
2500 kg |
|
Machine size (length * width * height |
2200*1350*1900mm (machine size) 900*700*2100mm (Cup receiver size) |
|
Cup body bonding mode |
Ultrasonic wave |
Yongbo Machinery Automatic intelligent paper cup forming machineYB-S100 Flat display
Yongbo Machinery Automatic intelligent paper cup forming machineYB-S100 Product introduction
The Automatic Intelligent Paper Cup Forming Machine YB-S100 efficiently produces paper cups of various sizes through processes like air suction paper transfer, welding, oiling, tube transfer, bottom punching, folding, heating, crimping, rolling, and collection. Key features:
1.High output: Up to 100-110 cups/min with low power consumption of around 5KW.
2.Compact design: Simplified from 3 to 1 turntable for easier collection.
3.Bottom stability: Bottom knife cuts paper directly into the cup base.
4.Fault detection: Light-controlled switch detects abnormalities, alarms, and stops to protect machine parts.
(Note: The actual production capacity of the machine is affected by many factors. The above data is for reference only.)
 |
 |
|
Paper feed |
Bottom cover and crimped edges |
 |
 |
|
CAM drive system |
Bottom feed system |
Production display
