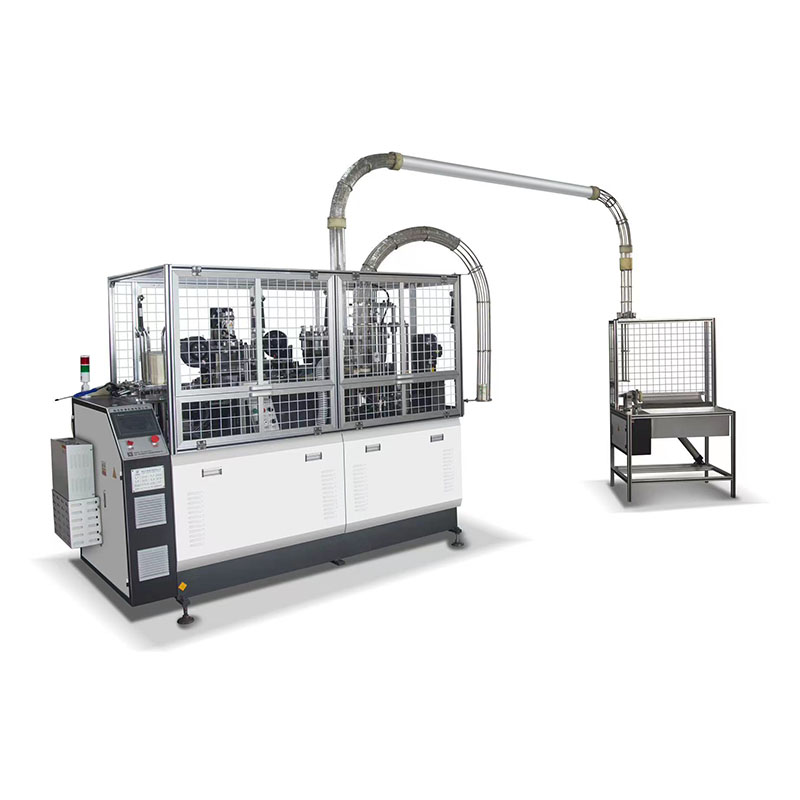

Automatic Paper Cup Forming Machine

The Automatic Paper Cup Forming Machine uses three turntables to complete the paper cup forming in three times. It adopts a desktop design structure to isolate the forming part and the transmission part. The transmission part is designed in the frame box, and adopts the longitudinal axis transmission automatic spray lubrication, indexing cam and gear transmission system; the forming part is above the partition plate, which is easy to clean and maintain.

Send Inquiry

Product Description

The Automatic Paper Cup Forming Machine undergoes secondary curling, the first rotary curling, and the second heating shaping, which improves the forming strength of the paper cup, makes the curling beautiful, and the size stable. The electrical system of the Paper Cup Forming Machine adopts PLC control, photoelectric tracking monitoring, and servo paper feeding. It is suitable for producing 4-16 ounce cold/hot drink paper cups.

Specification

Model number	Yongbo S100 double-sided film paper cup forming machine Paper cup equipment disposable paper cup machine automatic paper cup machinery
Paper cup size	2-12oz (Mold replaceable, Max cup height: 115mm, Max bottom width: 75mm)
Operating speed	100-110 PCS/min (speed is affected by cup size, paper quality thickness)
Raw material	Single or double sided PE coated paper (suitable for hot and cold drink cups)
Gram weight of paper	150-350 grams per square meter
voltage	50/60HZ,380V/220V
Total power	5 kw
Gross weight	2500 kg
Machine size (length * width * height	220013501900mm (machine size) 9007002100mm (Cup receiver size)
Cup body bonding mode	Ultrasonic wave
